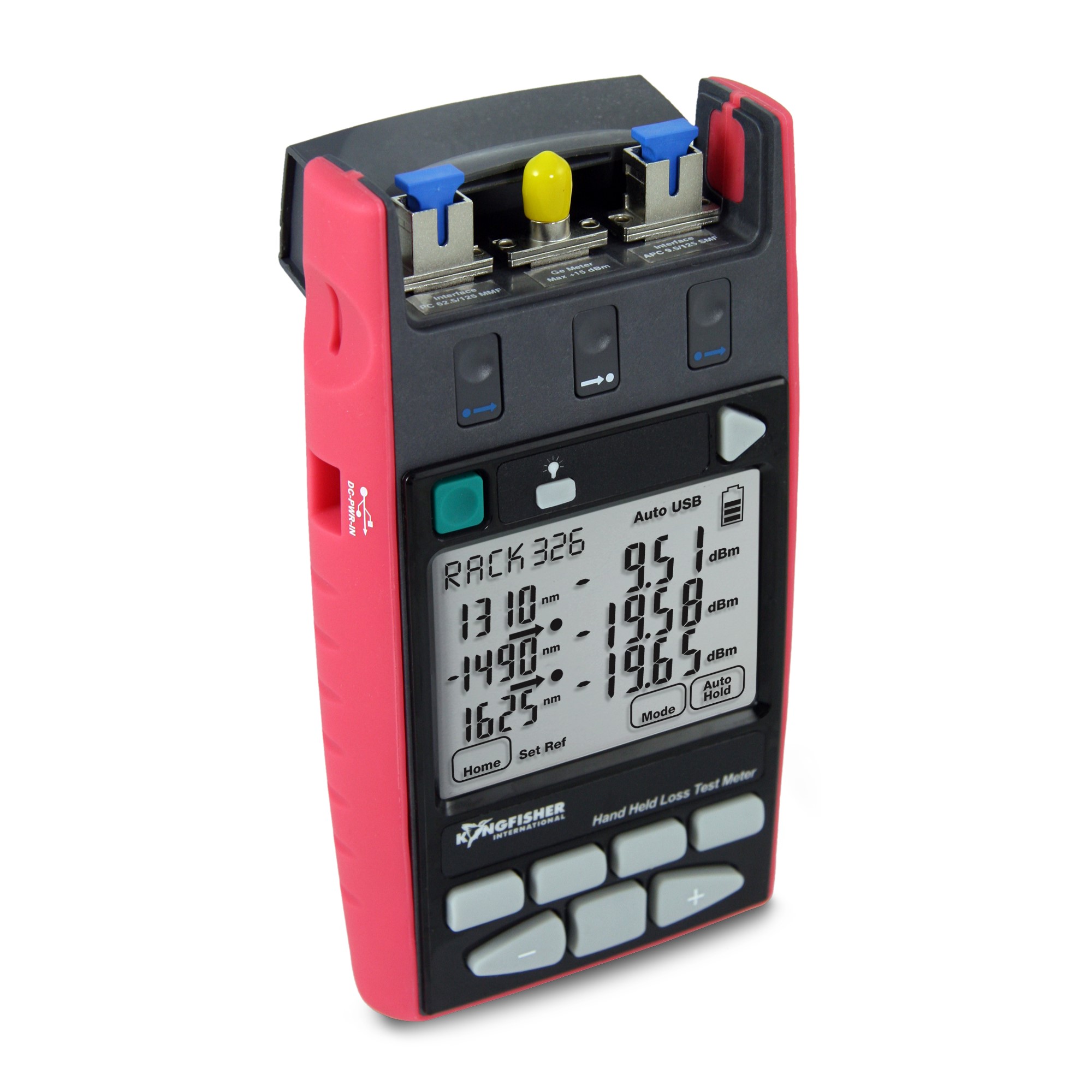

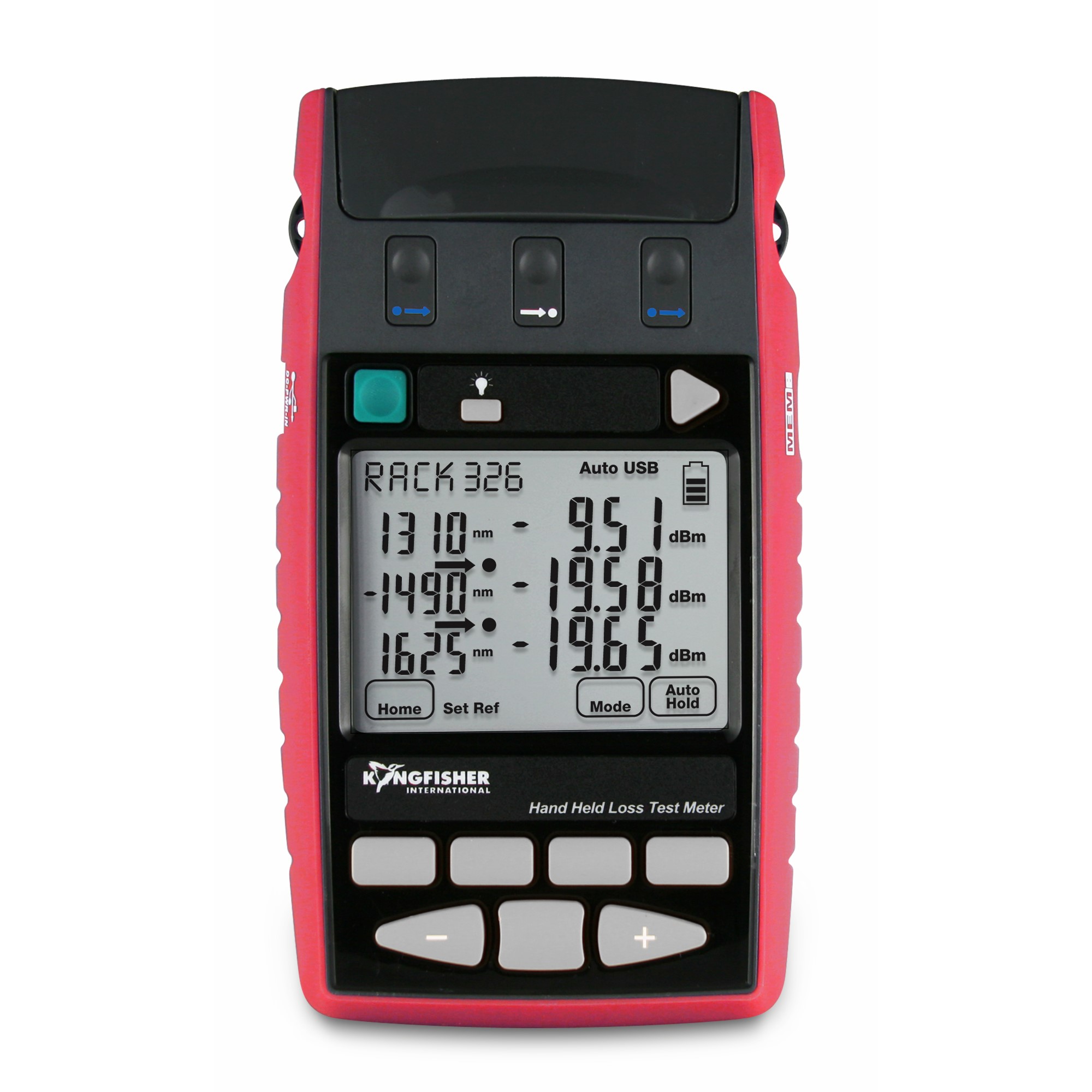

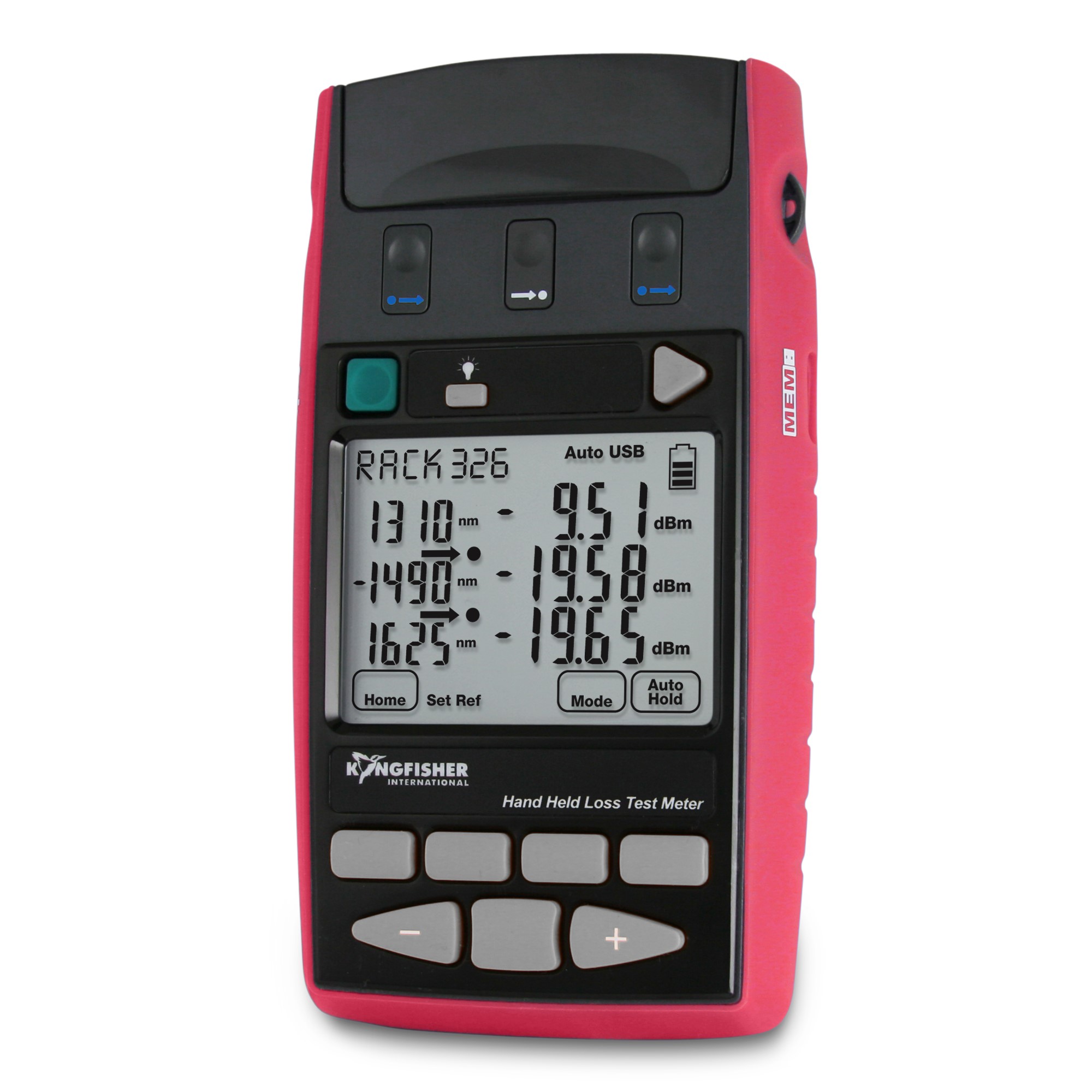

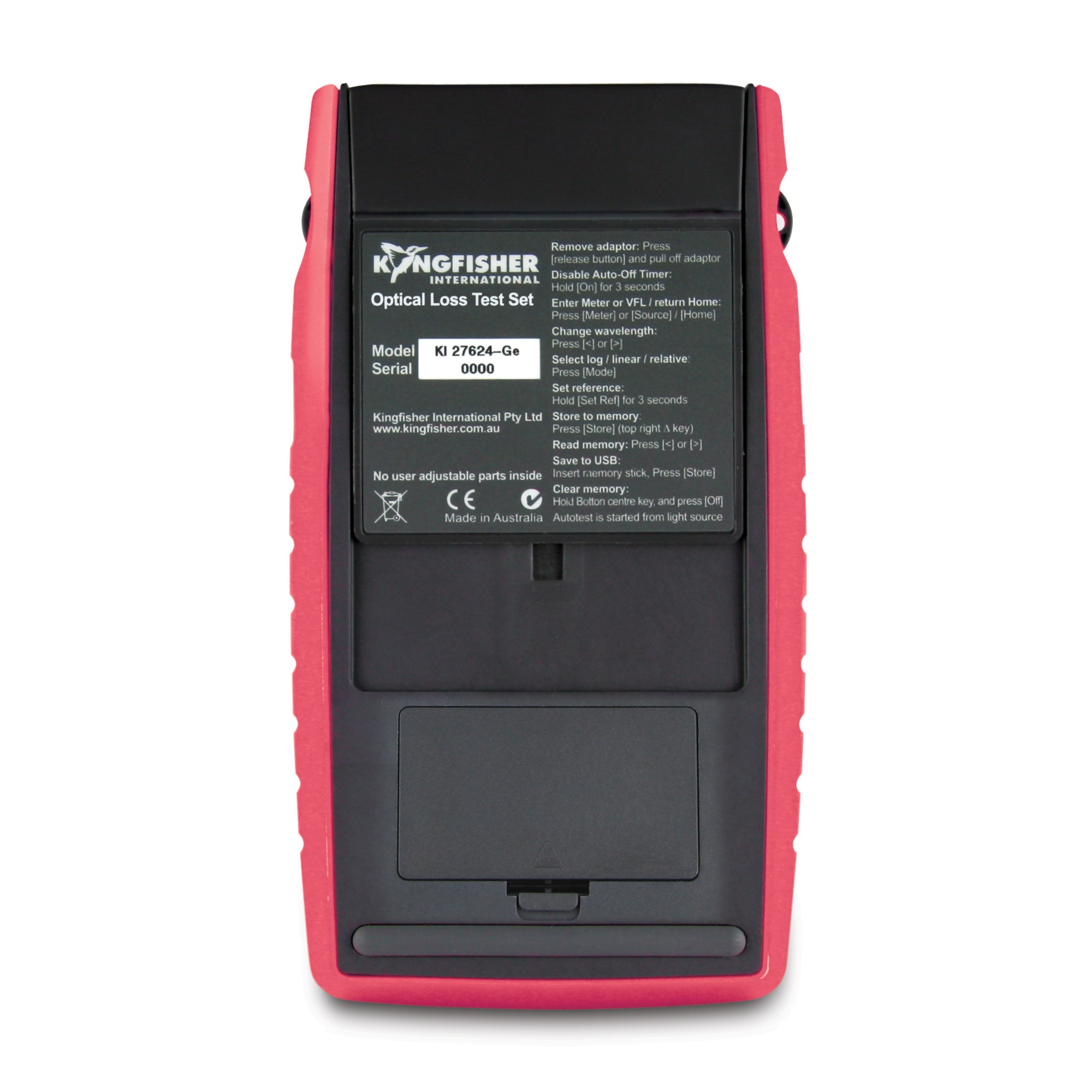

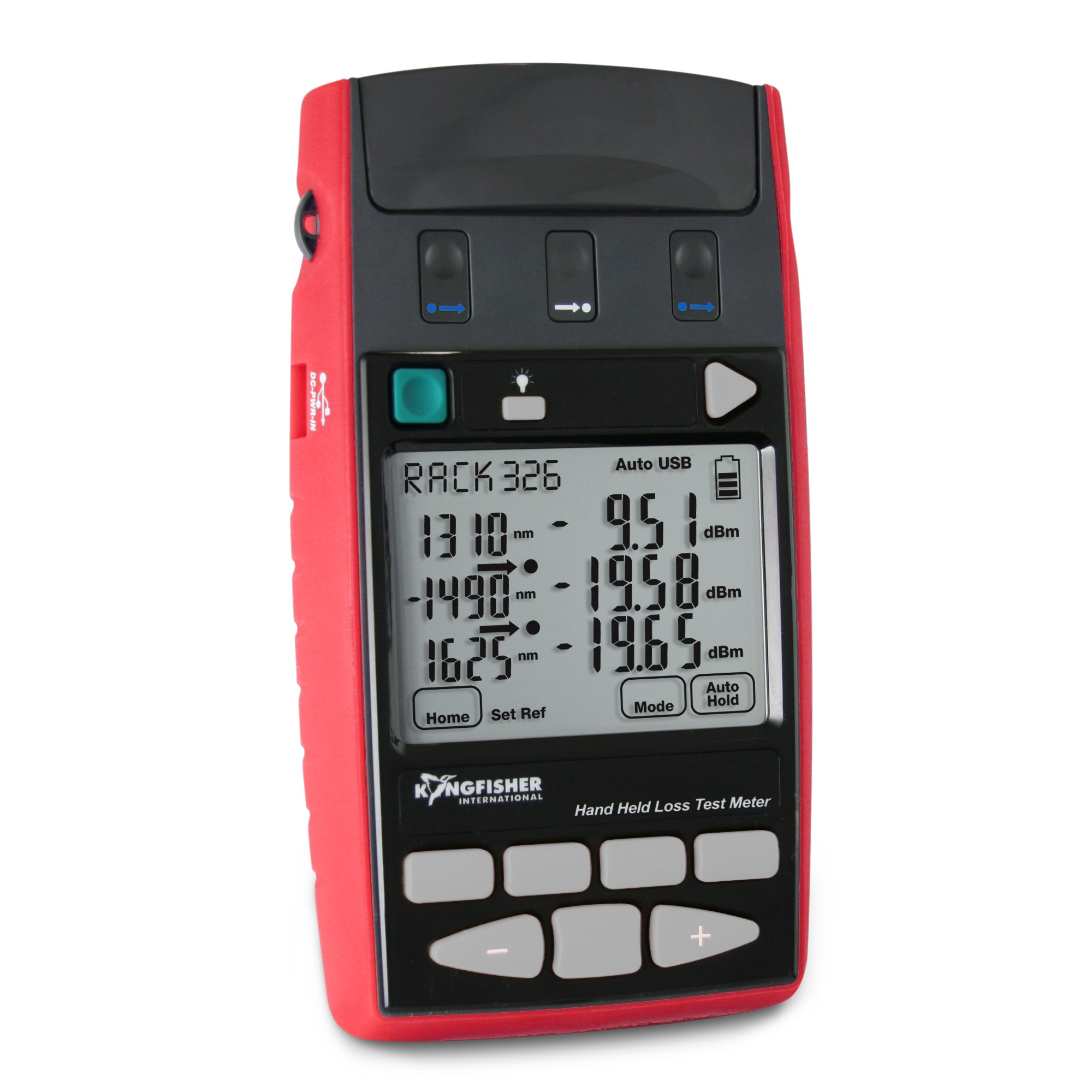

KI2700翠鳥光損耗測試儀

更新：2019/12/30 17:50:13??????點擊：

品牌：???
型號：???

產品介紹

KI 2700 系列

手持式損耗測試計—大測試面積

測試應用

?測試光功率，衰減和連續性

?MPO-12，MPO-24至MPO-72連接器

?POF和PCS纖維

?多種可互換連接器類型

KI 2700XL系列光損耗測試儀將光源與光源組合在一起

大面積探測器光功率計

有許多有用的功能。這是一個單

向損耗測試儀并顯示多個損失波長。雙向測試是由PC報告軟件支持。

主要應用是專家測試MPO，POF和PCF光纖請咨詢其他配置。

特點

?使用簡單，功能多樣，堅固耐用

?源和接口上的可互換連接器

米口。

?5 mm直徑的Ge或Si探測器

?LCD體積大，清晰，陽光下可讀，背光

?電池壽命長，外部電源/充電器通孔

USB

?同時2λ損耗顯示（850/1310 nm）

?靈活的實時PC報告軟件

?12光纖多光纖ID的連續性測試音

?環形通量兼容850/1310 nm光源

?提供心軸包裹的多模源

?緊湊，堅固，重量輕

?3?7年保修

?3年校準周期

?澳大利亞制造

KI 2700-XL系列–大探測面積手持光纖損耗測試計

KI 2700XL損耗測試裝置快速且易于使用定向損耗測試儀，集成功率計和光源于一體。具有660 nm POF源的硅探測器是理想的選擇測試POF / PCS，或帶有鍺的鍺探測器多模850/1300 nm光源是多模的理想選擇MPO測試。功率計測量絕對/相對功率和測試色調。它顯示mW，μW，nW，dB，dBm至0.01 dB分辨沒有范圍變化延遲。獨立存儲和顯示每個λ的參考。嚴格的總不確定度規范涵蓋了所有功率水平，溫度，連接器和光纖，無需用戶暗電流偏移。發射器具有出色的可重復性和穩定性。重新連接重復性<0.1 dB，因此非常出色測試準確性。自動測試提供快速簡便的多λ（波長）損耗測試，以及源標稱功率電平和λ，使用本地或遠程引用。靈活的儀器電源選項包括選擇電池，帶跳線可選電池充電器。外部

電源是通過微型USB。

這些儀器符合MIL PRF 28800F 2級通用

要求。

多光纖ID功能可以測試常見的測試音調還可以從多次測試中正確識別12種測試音中的1種

源。這可以加速連續性/極性測試。損耗測試結果可以存儲在大內存中使用文本輸入電纜名稱和時間戳，然后轉儲到USB存儲鑰匙上，提供面向未來的功能數據處理?；蛘?，可以直接點擊實時讀數客戶報告使用我們經過驗證的KITS?可定制

基于Excel的報告軟件。報告很容易根據任何術語，語言或格式進行定制。一個按鈕文件轉儲只需要Windows操作系統。該儀器使用2個不同系列的可互換光連接器適配器。光源端口使用SC

- X混合適配器，功率計端口使用螺絲7/8“-28 TPI適配器。請注意指定適合您需要的適配器。兩種類型都非常簡單交換或清理。提供SC適配器和其他適配器可提供小尺寸LC樣式。金屬免費適配器可避免高功率連接器受到污染統。

請咨詢以下配置：

光源：大功率探測器，特殊連接器，

波長選擇檢測器，特殊校準等

儀表：最多6個信號源，其他波長，功率電平，

連接器等

光功率計規格

Response l Nm	Damage level dBm	Calibration l nm	Power range dBm	Tone &Autotest Min⁵dBm	Midrange linearity¹ dB	Calibration Accuracy² %	Polarization Sensitivity⁵ dB	Total Uncertainty dB^{3, 4}	l Sensitivity ± 30 nm⁴ dB
Si detector
350 ~ 1100	+15	470, 520, *635,650,660,780,820,850*,980	+10 ~ -50 +10 ~ -60	-45	0.02	1 % (0.06 dB)	< 0.05	0.3	0.03
Ge detector
600 ~ 1650	+20	635, 650, 660, 780, 820, 1590, 1610, 1625, 1650, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570	+15 ~ -30 +15 ~ -40	-37	0.04	1 % (0.06 dB)	< 0.05	0.5	0.03
					typical		Typical	max	Typical

Note 1:Mid-range linearity @ 1550 nm for InGaAs& Ge, or 850 nm for Si. Non-coherent light, with APC connector. Excludes top 5 dB and bottom 10 dB of range.

Note 2: Calibration condition:non-coherent light, -35±5 dBm, 23±1°C, ±1 nm, 10±3 nm FWHM, PC ceramic connector, 100 mm fiber.

Note 3:Includes contributions of: varying optical connector types, calibration uncertainty, linearity over temperature & range, and fiber core diameter up to 200 mm.

Note 4: At calibration wavelengths in bold type.

Note: 5: For APC connector only

光源規格

	850 / 1300 nmLED	660 nm LED	650 nm VisiTester⁵	Comments
KI 2700XL series
Short term stability (dB)	0.01	0.01	N/A	For 15 min, typical ±D 2°C, after warm up, ORL < -25 dB
Stability over temp (dB)	0.35	0.35	N/A	Typical
Premium zero warm up & Ultra StableKI 2300XL series
Short term stability (dB)	0.01	N/A	N/A	For 15 min, max, ±D 3°C no warm up
Stability over temp (dB)	0.35	N/A	N/A	Max
Common for both KI 2700XL& KI 2300XL series
Output power (dBm) @ fiber type (μm)	-20 @ 62.5/125 -22.5 @ 50/125 -32 @ 9.5/125	-6 @ 1000 POF	2 @ SMF	N/A
Output power accuracy (dB)	± 1 (@ 62.5/125 only)	± 1	± 1	N/A
l initial tolerance (nm)	N/A	25	5	At 25 °C
l width, nm	N/A	15	3	FWHM, typical
l nm/°C	0.4	N/A	0.1	Typical
Mode Controlled Source	Mode controlled	N/A	N/A	50/125 compliant: IEC61280-4-1 {Ed.1.0}, TIA/EIA 526-14A & TIA TSB-178.
Reconnection repeatability⁶ (dB)	0.05	N/A	0.1	95 % confidence
Modulation	270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tones, 2 Hz blink forVisiTester

Class 1 Laser / LED infrared device. Compliant with IEC60825-1.

Note 5: VisiTester options:

The unique VisiTester option mixes a laser VFL with Autotest, so at the power meter end, the active test fiber winks, making it obvious to the user. It also extends practical fault finding options.

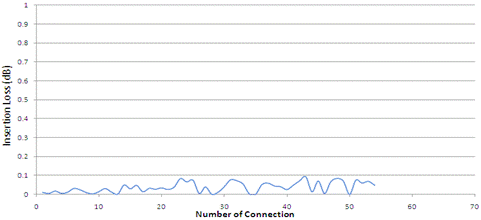

Note 6: Reconnection Repeatability:

KI 2700 light sources achieves very high reconnection repeatability of 0.1 dB, which provides steady output power every time connecting the light sources.

Parameters

Value

Parameters

Value

Battery life

Size

Weight

LCD size

Laser/LED source: 90/80 hours in Autotest, typical

190 x 105 x 35 mm (7.5 x 4.1 x 1.4”)

420 gm (0.9 lb.) / Shipping 1.5 Kg (3.3 lb.)

74 x 55 mm / 2.9 x 2.2”

Operating/Storage

Relative humidity

Tone detection

Calibration cycle

-15 to 55 °C / -25 to 70 °C

0 ~ 95 %

150 ~ 9900 Hz ± 1 %

3 years

Case

Dust cap

Memory

Polycarbonate / rubber edges & corners, moistureresistance, 1-meter drop tested

Captive, functions as tilt bail when slid open

1,000 four λ tests with date & time in internal memory, unlimited on USB memory key

Power

2x Alkaline AA cells or 2x NiMH AA cells, user selectable charging; Ext power input via micro USB; Selectable auto-off, low battery indicator, backlit display

其他規格

Australian and international patents. Technical data is subject to change without notice as part of our program ofcontinuous improvements.

訂貨信息

Description	No of Ports	Part number
Instrument, LTS 660 nm LED, Si 5mm	2	KI2709XL-Si5
Instrument, LTS 850-1300 nm LED, Ge 5mm	2	KI2703XL-Ge5

Please enquire for non-listed part numbersuch as: Wavelength, Power Levels, PC / APC Connectors, VisiTester option, andPremium zero warm up & Ultra Stable options.

標配

Description	Quantity
50 & 62.5 μm fiber mandrel wrap set for multimode sources (OPT701)	1 set
USB-A to USB-micro type cable	1
KITS? reporting software	Download from website for free
Carry pouch	1
Carry strap	1
Operation manual	1
Calibration certificate	1 set
QA certificate	1

This instrument is supplied with metal-free sleeve interchangeable optical connector adaptors. The ferrule type is fixed and customer specified as either PC or APC. Green is associated with APC. You can order any number of connector adaptors.

選配

Description	Part number
Option, Carry Case, KI2x/KI7x/KI3x, small (Carry Case for 2 Instruments)	OPT153*
Option, Carry Case, Cletop, Cleaning Sticks, KI2x / KI9x, large	OPT154B*

Please visit kingfisherfiber.com for a wide range of FiberTester kits.

OPTIONAL INTERCHANGEABLE CONNECTOR ADAPTORS

Description	Part number
For Power Meter port:
Option, Connector Adaptor XL 7/8-28, MTP / MPO 12 x n	OPT227
Option, Connector Adaptor XL 7/8-28, SMA 905/906	OPT203
Option, Connector Adaptor XL 7/8-28, Toslink	OPT230
Option, Connector Adaptor XL 7/8-28, POF multi For: Mini Toslink, unterminated POF cable, HFBR series (simplex and duplex), 2.5mm. The user turns the turret to the required hole size. Actual hole size 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm x 8.5 mm deep	OPT229
Option, Connector Adaptor XL 7/8-28, SC	OPT201
Option, Connector Adaptor XL 7/8-28, ST	OPT202
Option, Connector Adaptor XL 7/8-28, FC	OPT204
Option, Connector Adaptor XL 7/8-28, Biconic	OPT205
Option, Connector Adaptor XL 7/8-28, 1.25 mm Universal	OPT224
Option, Connector Adaptor XL 7/8-28, 2.5 mm Universal	OPT225
Option, Connector Adaptor XL 7/8-28, LC	OPT226A
Adaptors are suitable for both PC and APC polish connectors. Other styles available on request.

For Light Source port:
Option, Hybrid Adaptor, Ceramic Sleeve, SC/FC	OPT051
Option, Hybrid Adaptor, Ceramic Sleeve, SC/F3000 or LC Simplex, plastic body	OPT072
Option, Hybrid Adaptor, Ceramic Sleeve, SC/ST	OPT040
Option, Hybrid Adaptor, Ceramic Sleeve, SC/D4	OPT055
Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000	OPT060
Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000 Green	OPT060G
Option, Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body	OPT076
Option, Hybrid Adaptor, Ceramic Sleeve, SC/MU	OPT080
Option, Hybrid Adaptor, Ceramic Sleeve, SC/LSA-DIN47256	OPT071
Option, Hybrid Adaptor, SC/POF multi For: Mini Toslink, unterminated POF cable, HFBR series (simplex and duplex), 2.5mm. The user turns the turret to the required hole size. Actual hole size 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm x 8.5 mm deep	OPT077
Option, Hybrid Adaptor, Metal Sleeve, SC/SMA 905/906	OPT082
Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 2.5 mm	OPT081
Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 1.25 mm	OPT084
